Engineering Precision at the Arc with a GMAW Setup

In the world of metal fabrication, precision at the arc directly affects weld quality and structural integrity. Achieving it requires more than just skill. It demands a deep understanding of the gas metal arc welding (GMAW) gun and the adjacent componentry that can directly affect aspects of the weld, such as the weld pool size, joint penetration depth, and overall weld appearance. Maintaining arc control and consistency is a necessity, and the quality of a weld hinges on the seamless interaction of the gun setup, a welder’s experience, and thoughtful engineering.

The Core Elements of Arc Stability

At the heart of every GMAW setup are four essential components that must work together to ensure the arc is stable. If the arc is unstable, the weld quality suffers. Each component plays a critical role in generating and sustaining the arc.

• The Power Source. Arguably the most critical for arc stability, the power source controls the voltage and current, which directly impact the arc. Arc wandering and outages, spatter, and inconsistent joint penetration are common without high-quality power.

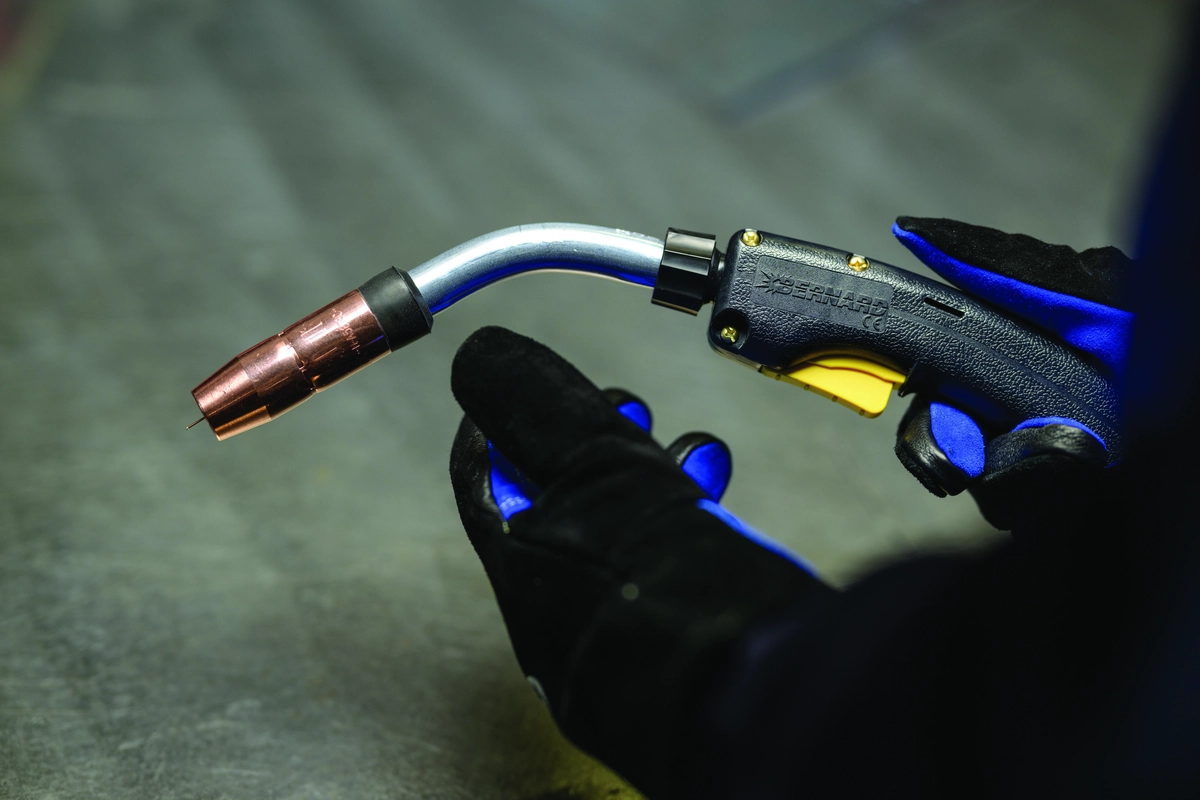

• The Gun. This piece of equipment transfers power, shielding gas, and filler metal to the weld zone. It must be properly sized and maintained for the amperage it’s used with.
• Consumables. The right liners, contact tips, diffusers, and nozzles are the foundation of consistency that help ensure dependable per-formance. The right consumables facilitate proper electrical contact, gas flow, and wire feeding, while worn, dirty, or lower-quality consumables lead to arc instability, excessive spatter, and gas coverage issues.
  Among consumables, the contact tip plays a pivotal role in arc precision. It must match the wire diameter closely to guide the wire while preventing keyholing and arc instability. Standard copper tips often require replacement every shift (might be more or less, based on the application), but HDP contact tips can last up to ten times longer, making them suitable for automotive pulse welding with higher amperage and duty cycles.
• The Filler Metal. The type of welding wire used affects arc characteristics, such as pool fluidity, spatter, and joint penetration. Some flux cored wires are specifically designed to provide better arc stability, produce less spatter, and work well in special applications, like galvanized steel, CO₂-rich shielding gas, or no shielding gas. Ultimately, the choice of filler metal needs to align with the base metal and the desired weld characteristics of the workpiece. Still, acceptable variation within those parameters can affect the outcome.

The interdependence of these four components is especially critical when welding different materials. If one part is underperforming, it can undermine the entire operation. In addition to these core building blocks, other factors such as wire feeding and shielding gas also play a critical role in sustaining a stable arc.

Consistent Wire Feeding Impacts the Arc

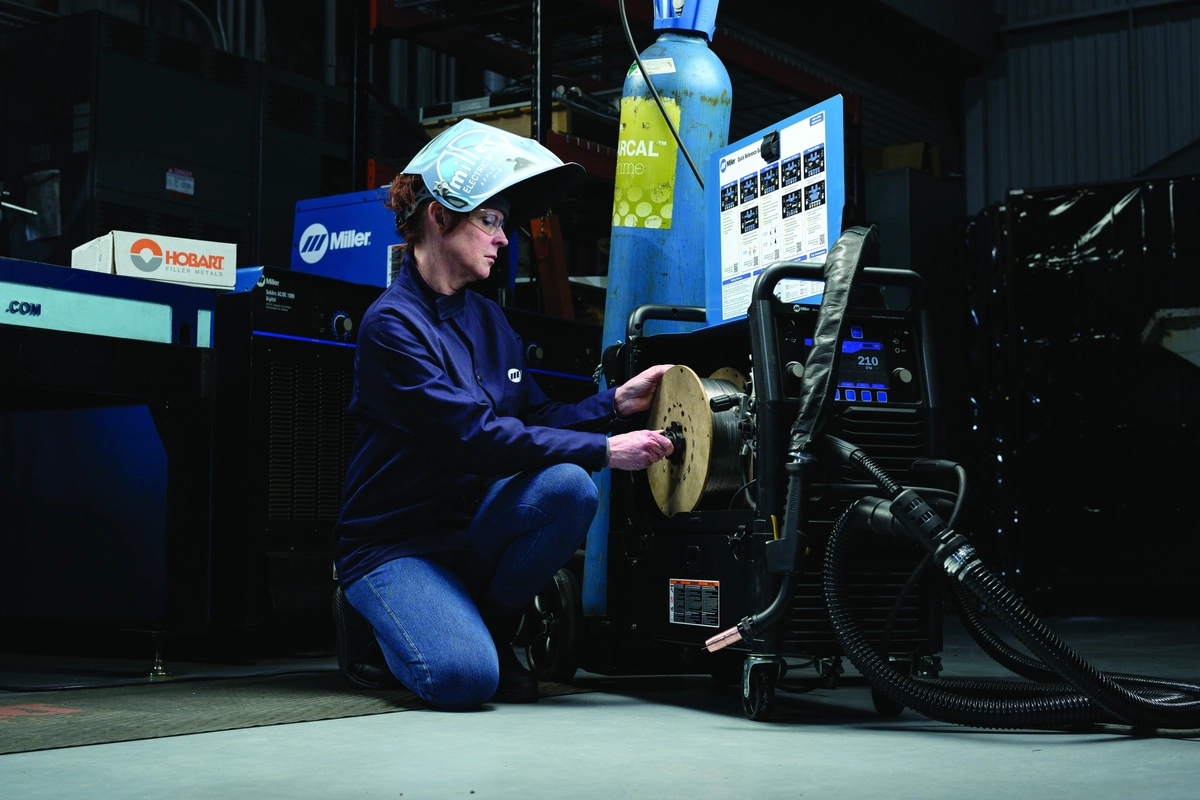

Wire feeding is a delicate dance of balancing voltage, wire size, and base metal thickness to consistently deliver the right amount of filler metal to meet required deposition rates. If the wire feed isn’t smooth and consistent, the arc will flicker, sputter, or even extinguish, so fine-tuning the settings is key to achieving a stable arc and minimizing weld defects, such as spatter, porosity, and undercut.

Handbooks and wire specification sheets offer guidance, but it’s not uncommon for new welders to face a learning curve. These resources provide tested parameters that serve as reliable starting points, and ballpark amperage values can be optimized through trial and adjustment. It should be noted that the contact tip distance to the workpiece is integral in establishing welding parameters, especially in steel welding.

Shielding Gases Influence Arc Characteristics and Stability

Shielding gases play a subtle yet powerful role in arc precision. They directly shape the arc’s behavior, heat, and metal transfer. Thus, choosing the right gas is essential for a smooth, stable, and high-quality weld. Without the right gas, the arc can flicker, wander, or extinguish, making consistent welding nearly impossible. Additionally, shielding gases protect the pool from atmospheric contaminants (i.e., oxygen, nitrogen, and hydrogen) that can destabilize the arc and cause porosity, cracking, or spatter.

Argon-rich mixtures like 90/10 or 75/25 (argon/CO₂) exhibit a more stable, concentrated arc, reducing spatter and improving arc quality depending on the exact combination. Pure CO₂ provides a deeper penetrating arc with higher heat transfer to the workpiece. Pure argon is essential for nonferrous metals, such as aluminum, because it produces hot plasma and a softer, broader arc that helps minimize distortion and prevents contamination.

In some cases, small additions of oxygen (typically 1–5%) are used to improve arc stability and wetting when welding carbon and stainless steel. Note: There’s a higher risk of oxidation, so oxygen is rarely used outside of specialized applications. Other shielding gases, such as helium, nitrogen, or even small amounts of hydrogen, may also be used in specific GMAW applications.

Ergonomics Align Comfort with Performance

Ergonomic design not only prioritizes comfort but also focuses on precision. Even though arc stability is often linked to the power source, wire feeding, and consumables, the welder’s ability to control the gun comfortably plays a huge role in maintaining a smooth, consistent arc.

Lightweight handles, flexible cables, and torque-balanced setups reduce operator fatigue, especially during long shifts. If the gun is heavy, unbalanced, or awkward, the welder is more likely to shake or drift. Good ergonomics reduce hand and arm fatigue, letting the welder hold a steady arc length and travel speed. Poorly designed guns can cause excessive strain in the wrist, shoulder, and back, leading to fatigue. Fatigue can then present itself as inconsistent angles, incorrect contact tip distance to the workpiece, irregular bead placement, and arc instability.

Because ergonomics are largely personal, some welders prefer heavier setups, while others want ultra-light designs (depending on the gun’s amperage rating). With younger generations entering the welding workforce, ergonomic innovation is becoming a priority. Flexible cables that don’t fight back and customizable handles cater to individual preferences, enhancing both comfort and control.

Arc Precision Is the Result of Coordinated System Performance

Precision at the arc comes from a coordinated system where every element plays a role, from the power source to the welder’s grip. By understanding and optimizing each element, fabricators can achieve stable arcs that produce cleaner, stronger, and more reliable welds. In today’s competitive landscape, mastering arc control isn’t just beneficial — it’s essential.

This article was written by Pouya Mohammadkhani, P.Eng., (R&D engineer at Bernard and Tregaskiss (a division of ITW)) for the American Welding Society.
