Inspection Trends

Camera System with Transport Box Simplifies Remote Visual Inspection

The Everest Ca-Zoom HD pan, tilt, and zoom (PTZ) camera system offers precise, efficient, and secure confined-space inspections for a variety of industries, including oil and gas, power, chemical, pharmaceutical, and food and beverage. A 22-kg (48.5-lb), all-in-one wheeled transport box holds all items of the system in one container and makes traveling and setup at the inspection site simple. A backpack option with essential cables is also available and enables hands-free climbing and easier access to inspection spaces. The advanced camera system is equipped with two PTZ camera heads and accompanied by all essential accessories. The handheld control unit provides an intuitive operating system with image capture and laser measurement capabilities, catering to the demands of vessel and tank inspections. The handheld pendant also allows inspectors to move freely during the inspection. The camera offers high-definition images with a resolution of 1920 × 1080 pixels, and its light output is composed of four LEDs delivering a brightness of 2980 lumens for visibility in dark environments.

Waygate Technologies

bakerhughes.com/waygate-technologies

Phased Array Ultrasonic Testing Instrument Offers Fast Inspections

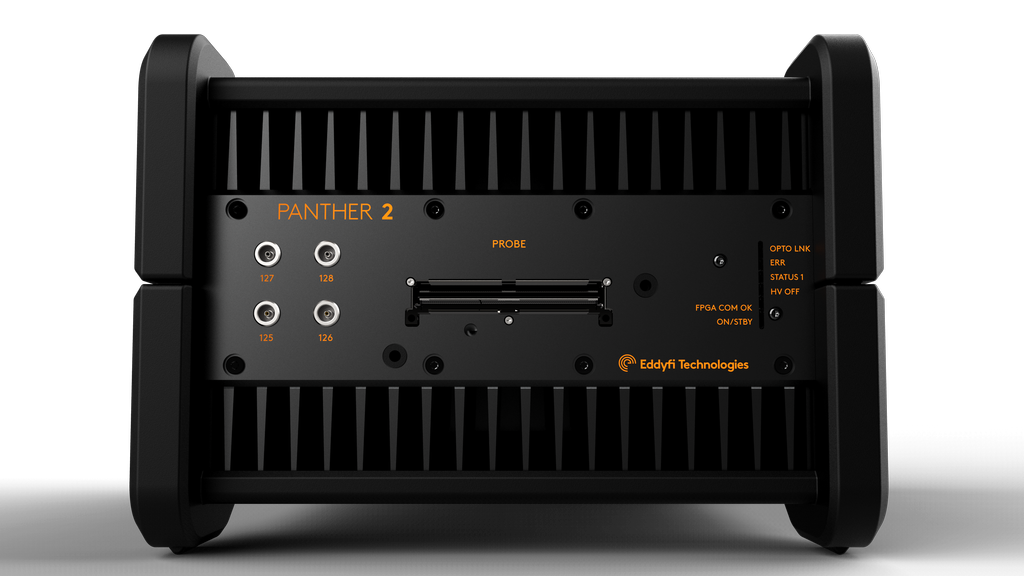

The Panther™ 2 phased array ultrasonic testing instrument with total focusing method delivers a 10 gbit/s data throughput. It is scalable up to 16 stackable units working together for up to 2048 channels for even higher speed and resolution. The instrument stands up to harsh industrial environments, making it ideal for manufacturing, laboratory, and field settings. The
second-generation instrument bears a reinforced and rugged design with casing that incorporates external fans for optimized heat dissipation with no air intake. Users can completely automate their process, customize displays, create unique supervision software, develop specific analysis features, and monitor productivity with established benchmarks with the software development kit. The acquisition software, Acquire™, is fully compatible with CIVA and ULTIS software for simulation, experimentation, and advanced analysis. This compatibility allows users to integrate the instrument into their existing inspection systems.

Eddyfi Technologies

eddyfi.com
